Why AMI Analytics Is a Distinct Discipline
Advanced Metering Infrastructure (AMI) produces some of the highest-volume data utilities handle. A utility with one million customers producing 15-minute interval data is processing 96 million records per day. The volume exceeds what generic analytics platforms handle efficiently. The patterns for AMI analytics have evolved to specific architectures that match the data characteristics.
The use cases for AMI analytics are also specific. Customer billing requires precise interval data. Operational analytics on distribution networks requires lower-resolution aggregates across many customers. Customer-facing energy insights require usage analysis at the individual level. Each use case has different access patterns and different latency requirements.
A utility data architect described the architectural transition to me last year. "We tried to put AMI data into our existing data warehouse. The performance was terrible and the cost was unmanageable. We moved to a dedicated AMI analytics platform with the right storage and query patterns. The cost dropped and the performance became acceptable." The pattern is common across utilities that have deployed AMI at scale.
The reference patterns for AMI analytics in 2026 share specific properties. They are not generic data warehouse patterns adapted to AMI data. They reflect the specific data characteristics and use cases.
Why Functional Infrastructure Fails Series B Due Diligence
Inside a 90-day sprint that took a flagged round to a $28M close.

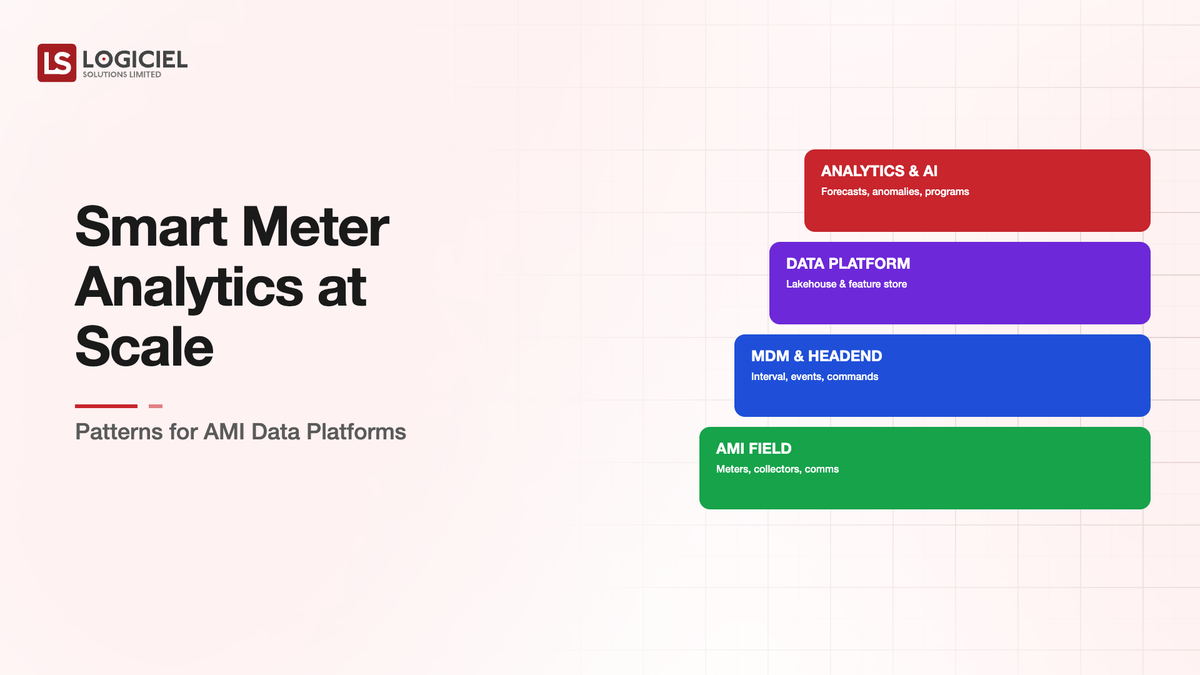

The Data Pipeline From Meter to Analytics
The data pipeline from smart meters to analytics has several stages, each with specific patterns.
Meter data collection happens through the AMI head-end system. The head-end communicates with meters over the AMI network (RF mesh, cellular, power line carrier, or other technologies). The head-end is a specialized system that handles the meter-specific protocols and communication patterns.
Meter data management (MDM) processes the raw meter data into validated and editable form. The MDM handles missing intervals, suspect readings, and the validation against business rules. The MDM systems (Itron, Landis+Gyr, Oracle, others) provide the operational platform for the meter data.
The analytics layer consumes the processed data from the MDM. The pattern that works replicates data from the MDM to a dedicated analytics platform rather than running analytics directly against the MDM. The replication respects the MDM's role as the source of truth while enabling analytics at scale.
Streaming and batch processing coexist in the analytics layer. Streaming handles the real-time use cases (outage detection, anomaly detection). Batch handles the analytical queries (consumption patterns, network analytics). The two are integrated rather than separate systems.
The data lake or lakehouse pattern is common at the analytics layer. Raw data in cold storage. Aggregated data in warmer tiers. Specific data products for specific use cases. The pattern handles the data volume cost-effectively while supporting the various analytical access patterns.
Time-Series Storage Patterns
Time-series storage is the dominant pattern at the AMI analytics layer. The choices have specific properties.
Specialized time-series databases handle some workloads well. TimescaleDB, InfluxDB, and similar databases are tuned for high-volume time-series ingestion and time-range queries. The cost and performance characteristics depend on the specific workload.
Cloud-managed time-series services (AWS Timestream, Azure Data Explorer) provide managed alternatives. The managed services reduce operational complexity at the cost of some flexibility. Most utility AMI deployments in 2026 use either specialized databases or cloud-managed services rather than running their own time-series infrastructure.
Columnar formats (Parquet, ORC) on object storage handle the analytical workloads efficiently. The cost of storage is low. Query performance is good with appropriate partitioning. Many utilities use this pattern for historical data and use a different store for current operational data.
Aggregation pre-computation produces faster query performance for common access patterns. Hourly aggregates per customer. Daily aggregates per feeder. Monthly aggregates per service territory. The aggregates serve most queries without going to the raw interval data.
Hot and cold tiering manages storage cost. Recent data in fast storage. Older data in slower, cheaper storage. The boundaries depend on the access patterns and the regulatory retention requirements.
Analytics Use Cases
AMI analytics supports many use cases. The patterns differ by use case but share the underlying data infrastructure.
Billing analytics is the foundational use case. The data has to be accurate, complete, and timely for billing operations. The patterns include data quality monitoring, late-arriving meter data handling, and integration with the customer information system.
Operational analytics for distribution networks uses AMI data to understand the network's behavior. Voltage analysis at customer endpoints. Phase identification. Outage detection through meter ping patterns. Distribution transformer loading inferred from aggregate consumption. The use cases provide network visibility that pre-AMI distribution operations did not have.
Customer-facing analytics give customers insight into their own consumption. Bill projections. Comparison to similar households. Time-of-use analysis for rate decisions. The analytics support the customer engagement that modern utilities increasingly emphasize.
Program analytics evaluate the effectiveness of utility programs. Demand response participation. Energy efficiency program outcomes. Time-of-use rate impacts. The analytics inform program design and customer targeting.
Theft and tampering detection identifies meters with unusual patterns that may indicate energy theft or meter tampering. The detection uses pattern analysis across many customers and over time. The patterns that emerge inform field investigation prioritization.
Demand forecasting and planning benefit from AMI data. The granular consumption data enables better forecasting than aggregate data. Specific customer segments, geographic areas, and times of day can be modeled with the AMI data.
Privacy and Regulatory Considerations
AMI data is sensitive customer data subject to privacy and regulatory considerations. The analytics platform has to handle these explicitly.
Privacy regulations vary by jurisdiction. California has specific energy data privacy rules. Other states have varying requirements. The Green Button Initiative provides a framework for customer-authorized data sharing. The platform has to enforce the relevant privacy rules.
Access controls limit who can see what data. Customer service representatives may see their assigned customers' data. Analytics teams may see aggregated data. Third parties (researchers, vendors) may have specific limited access. The access controls are enforced through the platform's authorization layer.
Aggregation rules apply to the data shared more broadly. Small geographic areas may need to be aggregated to larger areas to prevent identification of individual customers. The aggregation rules vary by jurisdiction and use case.
Retention rules dictate how long data is kept. Different data has different retention requirements. Billing data has long retention requirements. Some analytical data has shorter retention requirements. The platform has to handle the retention lifecycle automatically.
Audit logging captures data access for compliance review. Who accessed what data, when, and for what purpose. The logging is part of the platform infrastructure.
What Modern AMI Analytics Platforms Look Like
The reference patterns in 2026 share recognizable components across utilities that have built operational AMI analytics platforms.
Data pipeline from meter to MDM to analytics layer. The pipeline respects the MDM as the source of truth while enabling analytics at scale.
Specialized time-series storage for the operational workloads. Columnar storage on object stores for the analytical workloads. The storage choices match the access patterns.
Aggregation pre-computation for common queries. The aggregates serve most workloads efficiently.
Multiple use case support on the shared infrastructure. Billing, operational, customer-facing, program, theft detection, and forecasting use cases. The infrastructure supports the variety.
Privacy and regulatory enforcement integrated into the platform. Access controls, aggregation rules, retention, and audit logging.
Integration with the broader utility stack. Customer information systems, outage management systems, distribution management systems, and program management systems. The AMI data flows into and out of these systems through defined interfaces.
The patterns are not specific to any single MDM vendor or cloud platform. They apply across the major vendors and platforms. The choices depend on the utility's existing investments and strategic context.
Why Board Decks Reject Technical Infrastructure Cases
Inside a financial-frame business case that turned a 14-month stall into a 45-minute board approval.
What Logiciel Does Here
Logiciel works with utilities and energy data platforms building AMI analytics capabilities. The work is typically structured around platform architecture, use case implementation, and privacy and regulatory integration alongside the broader AMI program.
The Data Pipelines for Sensor-Heavy Energy Workloads framework covers the broader patterns. The Data Engineering for Energy framework covers the cross-source integration that AMI analytics often requires.
A 30-minute working session is enough to assess your AMI analytics architecture against the 2026 patterns.
Frequently Asked Questions
Should we keep AMI analytics in our MDM or build a separate platform?
Most utilities build separate analytics platforms while keeping the MDM as the source of truth. The MDM is optimized for operational use rather than analytical access. The separate analytics platform enables the use cases that the MDM cannot support efficiently. The replication between the two is part of the architecture.
What is the right time-series database for AMI?
Depends on the volume, the team skills, and the existing investments. TimescaleDB, InfluxDB, and cloud-managed services (Timestream, Data Explorer) all work for AMI workloads. The choice is less critical than the architectural patterns; multiple databases can produce good outcomes if the architecture is right.
How granular should the AMI interval be?
Standard interval depends on the use cases. 15-minute intervals are common for billing-required data. 1-hour intervals work for many analytical use cases. Some utilities collect 1-minute or sub-minute intervals for specific operational uses. The interval choice affects data volume; 1-minute intervals produce 15x the data of 15-minute intervals.
What about customer-facing analytics? Are those self-serve?
Increasingly yes for the basic patterns. Customers see their consumption, bill projections, and comparison data through utility portals or apps. The data flows from the AMI analytics platform to the customer-facing systems through defined interfaces. The patterns continue to mature as utilities invest in customer engagement.
How does AMI data integrate with other utility data?
Through the canonical model that the broader data platform maintains. AMI data describes consumption at meter level. Customer information data describes who consumes. Outage management data describes when service is interrupted. The integration produces the cross-source views that operational and analytical use cases depend on. ## Sources: DOE Smart Grid Investment Grant Reports, 2024 Green Button Alliance Standards, 2024 EEI Annual AMI Reports, 2024
