Where Streams Break First
A senior streaming engineer at a telecom told me about an incident that took down their real-time fraud detection for forty minutes in 2024. The workload joined transaction events with account state and recent device history to score fraud probability. The pipeline had been running for two years. It broke when one of the source streams had a brief outage. Recovery took longer than the outage because the join state had grown to a size the team had not planned for, and the restart took time to rehydrate.
She said the incident had a familiar shape. Streams do not usually break on the simple operations. They break on the joins. Stateful joins at scale are where the engineering effort concentrates and where the production incidents emerge.
The pattern is consistent across stream processing platforms. Filters, aggregations, and transformations work cleanly. Joins are where the architecture has to make hard choices about state, time, and consistency. The choices matter because they affect both correctness and operability.
The Three Failure Modes
Three failure modes account for most streaming join incidents.
The first failure mode is unbounded state growth. The join requires keeping state for joining records. If the state has no cleanup mechanism, it grows without bound. The system eventually hits memory or disk limits. The pipeline either crashes or slows to unusability.
Unbounded state usually emerges in workloads where the join window was not designed carefully. A join that "remembers" all previous records to match against new ones grows linearly with traffic. The growth is invisible until it crosses operational thresholds.
The second failure mode is late or out-of-order arrival. Events from different streams arrive at different times. A streaming join has to decide what to do when the matching record for an event has not arrived yet. Wait? Emit a partial result? Buffer indefinitely? Each choice has consequences.
Late arrival usually causes problems in workloads where streams have substantially different latency characteristics. One stream is real-time from a high-throughput source; another stream is delayed by an upstream batch process. The join has to absorb the latency mismatch without producing wrong results.
The third failure mode is restart cold-start latency. When the stream processor restarts (for deployment, failover, or recovery), the join state has to be rehydrated. If the state is large and the source streams cannot replay quickly, the restart takes hours during which the pipeline produces no useful output.
Cold-start latency was the issue in the telecom incident. Recovery took longer than the original outage because the state restoration was slow.
These three failure modes are well-understood by the streaming community and still produce incidents because the design choices that prevent them are workload-specific.

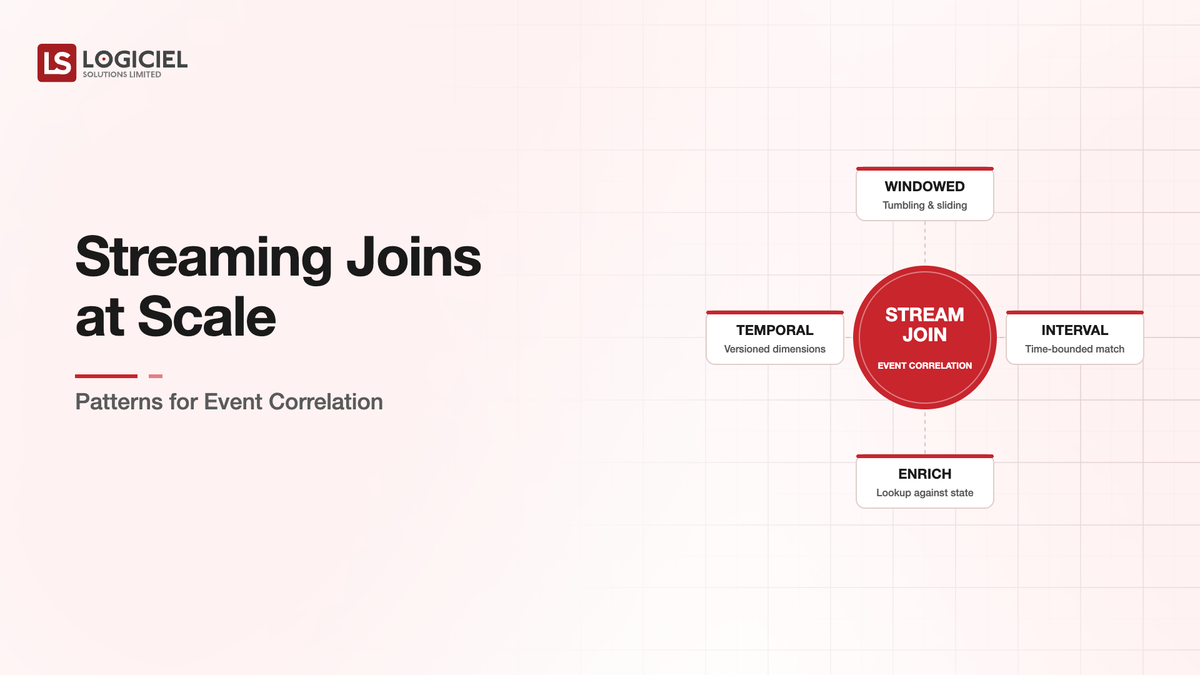

The Three Patterns That Handle Streaming Joins
The patterns are not mutually exclusive. Most production streaming join architectures use combinations.
The first pattern is windowed joins with explicit retention. The join keeps state only for records within a time window. Older records are evicted. The window size matches the expected matching latency plus a margin.
A user-event-to-purchase join might use a 24-hour window because users typically purchase within a day of their qualifying event. Records older than 24 hours get evicted from state. State size stays bounded.
The pattern works when the workload has a clear matching latency. It fails when matching can happen at arbitrary times (long-running campaigns, persistent user states) because the window cannot be sized usefully.
The second pattern is enriched stream joining against materialized views. Instead of joining two streams against each other, one stream gets joined against a materialized view of the other. The materialized view is updated incrementally but held as a snapshot. The join is fast because the snapshot serves lookups efficiently.
Why Functional Infrastructure Fails Series B Due Diligence
Inside a 90-day sprint that took a flagged round to a $28M close.
A transaction stream joined against an account snapshot fits this pattern. Account state changes are folded into the snapshot continuously. Transaction joins read from the snapshot. The join performance is predictable; the snapshot's freshness is the variable.
The pattern works when one side of the join is meaningfully smaller or slower-changing than the other. It fails when both sides are high-throughput streams of similar size.
The third pattern is partitioned co-located joins. Both streams are partitioned on the join key. The stream processor runs join operators per partition. Each operator only sees one partition's records and joins them locally. No cross-partition communication is needed.
The pattern works at very high scale because the parallelism scales with partition count. It requires that the join key be the natural partition key, which is not always true. It also requires that both source streams be partitioned consistently, which often requires explicit repartitioning.
What Modern Stream Processors Support
The three patterns are supported across modern stream processors with varying depth.
Apache Flink supports all three patterns natively with mature implementations. Windowed joins, broadcast or temporal table joins, and keyed/partitioned joins are first-class. Flink's state management is among the most sophisticated in open-source stream processing.
Apache Spark Structured Streaming supports the patterns with somewhat different semantics. Watermark-based windowed joins, stream-static joins, and partitioned joins all work. The micro-batch architecture produces some latency characteristics that pure streaming systems do not have.
Materialize and RisingWave (the SQL-first streaming systems) support the patterns through their SQL semantics. Incremental view maintenance handles many join cases that traditional stream processors require explicit logic for. The SQL abstraction simplifies development; the underlying execution is comparable to Flink in capability.
Kafka Streams supports windowed joins and table-stream joins natively. The library is lighter-weight than Flink or Spark and fits applications that need stream processing embedded in services rather than as a separate platform.
The choice of stream processor affects how the patterns are implemented. The patterns themselves are universal.
The Operational Practices That Matter
Beyond the architectural patterns, three operational practices distinguish streaming join workloads that run reliably from workloads that produce incidents.
State size monitoring is the first practice. Track the size of join state continuously. Alert when state grows toward operational limits. Most incidents involving state growth are preventable through monitoring that surfaces the trend before it becomes critical.
Checkpoint and restart testing is the second practice. Restart the stream processor under controlled conditions periodically. Measure how long state restoration takes. Identify whether the restart latency is acceptable for production incidents. Most teams discover restart latency problems during real incidents because they have not tested otherwise.
Backpressure handling is the third practice. Stream processors handle backpressure differently. Test the workload under sustained load that exceeds processing capacity. Verify that the system degrades gracefully (queueing, backpressure propagation) rather than failing catastrophically. The behavior under load matters more than the behavior at typical load.
These practices apply across stream processors. They are necessary because the join workloads have failure modes that only emerge under specific conditions.
Why ML Pilots Pass Review Then Die in Production
Inside a 12-week overhaul that doubled output and cancelled two senior data engineering hires.
What Logiciel Does Here
Logiciel works with engineering teams operating streaming workloads where joins are the architectural concern. The work is typically structured around assessment of current join patterns against the three failure modes followed by appropriate architectural and operational changes.
The Event-Driven Architecture for AI Workloads framework covers the broader event-driven decisions that streaming joins fit within. The Real-Time AI Inference at Scale framework covers the latency budget considerations that affect streaming join workloads serving AI.
A 30-minute working session is enough to assess your current streaming join workloads against the failure modes and patterns.
Frequently Asked Questions
How do I size the window for windowed joins?
Through analysis of historical matching latency. Look at the distribution of time between matching events in historical data. The window should cover the 95th or 99th percentile depending on tolerance for unmatched records. Sizing the window too small drops legitimate matches; sizing too large grows state unnecessarily.
When should I use Materialize or RisingWave versus Flink?
Materialize and RisingWave when the workload fits SQL semantics cleanly and the team prefers SQL over Java/Scala. Flink when the workload requires custom state management, specific exactly-once semantics, or capabilities the SQL-first systems do not expose. The choice has become genuine in 2024-2025; both options are credible.
How do I handle joins across very different time scales?
Through enriched stream against materialized view patterns. The slow-changing side becomes the materialized view. The fast-changing side joins against it. The pattern handles time-scale mismatch better than direct stream-stream joins.
What about joins with three or more streams?
Best decomposed into pairwise joins where possible. Multi-stream joins are technically supported by modern processors but are operationally harder to reason about. Pairwise decomposition produces clearer state management and easier debugging.
How does AI workload integration affect streaming joins?
AI features that depend on real-time joined data add latency budget constraints. The streaming join has to fit within the AI feature's latency budget. Joins that work at offline analytics latency may not work for real-time AI. The architectural decisions need to be made with AI latency requirements explicit. Sources: - Apache Flink documentation, 2024 - Materialize documentation, 2024
